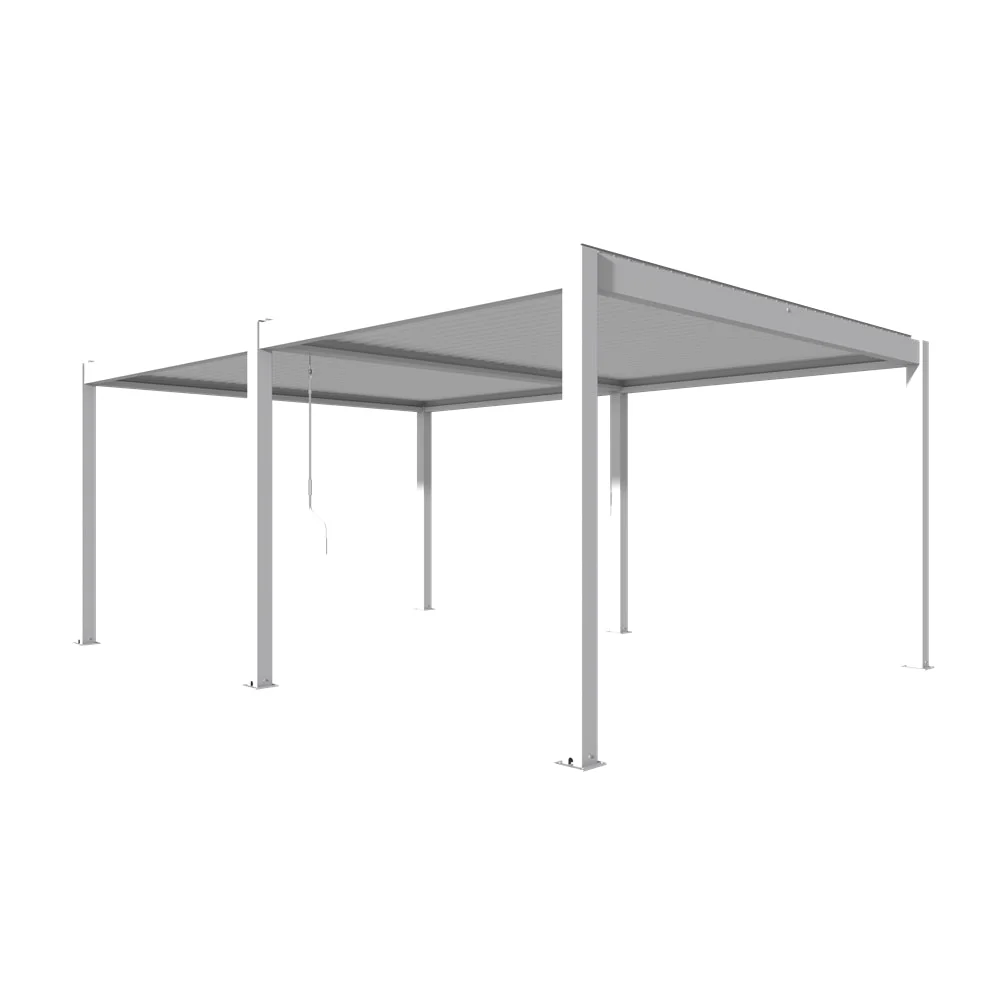

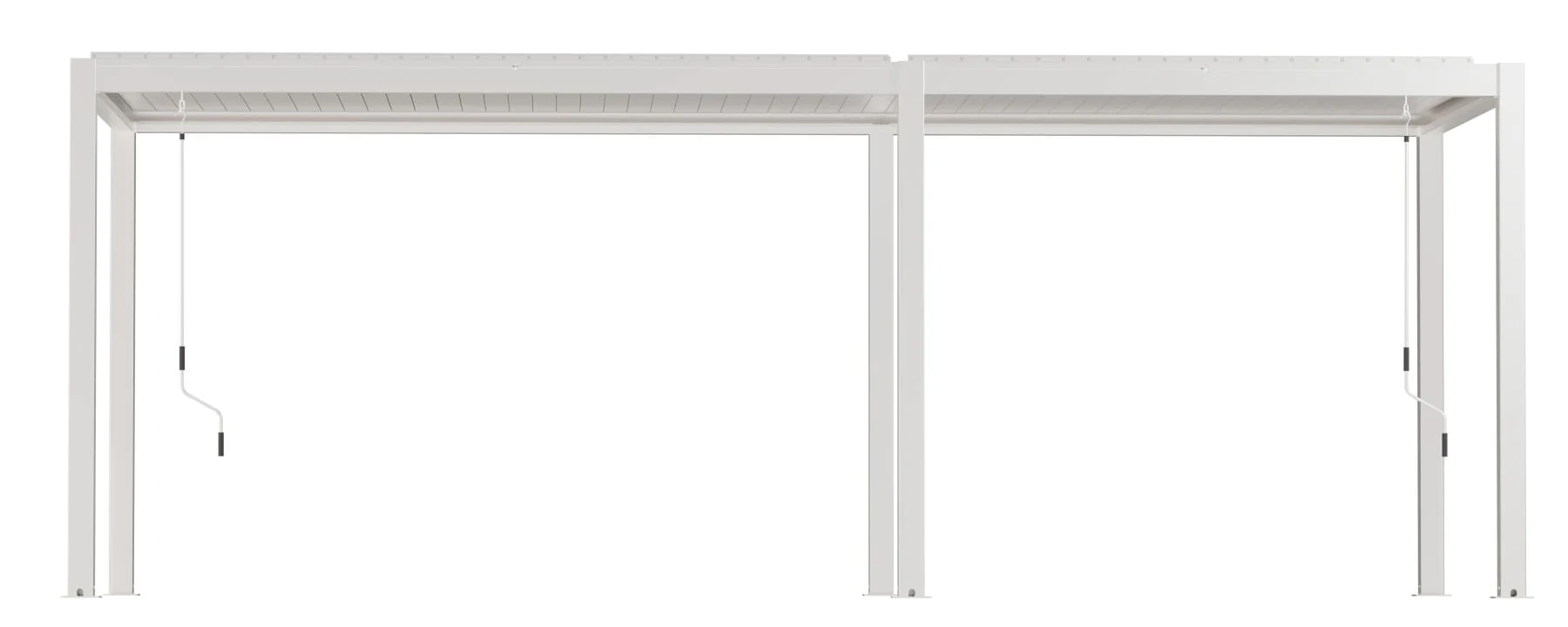

Aluminium Louvre Pergola Manual Wall Mounted

The Aluminium Louvre Pergola Manual Wall Mounted 4x6m delivers a modern, architectural outdoor shade solution designed to seamlessly extend your indoor living space. Engineered specifically for harsh Australian weather conditions, this heavy-duty system features a high-grade powder-coated aluminium frame that resists rust, corrosion, UV degradation, and fading.

Featuring a 2-leg wall-mounted design, the structure fixes directly to external load-bearing walls, brickwork, or fascia, eliminating the need for rear posts to maximize clear floor space on decks, patios, and alfresco areas. The adjustable dual-bank louvred roof is operated via an effortless manual hand-crank system. The louvres smoothly pivot from 0 to 90 degrees, allowing precise control over sunlight, ventilation, and shade. When fully closed, the interlocking louvre blades form a watertight seal complete with an integrated gutter and internal post drainage system that efficiently channels rainwater away from the structure.

Key Features

• Wall-Mounted Space-Saving Design: Secures directly to external structural walls, providing clean aesthetics and unobstructed floor space underneath.

• Manual Hand-Crank Activation: Smooth, user-friendly gear crank allows independent or dual-zone adjustment of the louvre blades without requiring electrical wiring.

• Adjustable Louvre Blades: Rotates up to 90 degrees to capture cooling breezes, manage ambient light, or block out direct summer heat.

• 100% Watertight Interlocking Roof: Fully sealed louvre configuration protects furniture and entertainment areas from sudden rain downpours.

• Concealed Drainage System: Built-in internal gutters direct rainwater runoff through the support posts and out through base-plate drainage ports.

• Durable Powder-Coated Finish: UV-stabilised exterior coating resists scratching, chalking, and coastal saline air for low-maintenance longevity.

• Heavy-Duty Construction: Fabricated using thick-gauge extruded aluminium profiles and stainless steel assembly hardware to ensure wind-rated structural stability.

Specifications

• Overall Dimensions (L x W x H): 6000 mm x 4000 mm x 2500 mm (approx. external clearance height)

• Mounting Type: Wall-Mounted Structure (2 Support Legs)

• Frame Material: Commercial-Grade Extruded Aluminium

• Finish: Weather-Resistant Powder Coat

• Louvre Operation: Manual Hand Crank (Detachable Pole Included)

• Tilt Angle: 0° (Fully Sealed) to 90° (Fully Open)

• Drainage: Integrated Gutter & Hidden Downpipe System

• Wind Rating: Up to 120 km/h (When Louvres are Secured Closed)

• Post Dimensions: 120 mm x 120 mm (1.6 mm – 2.0 mm wall thickness)

• Fasteners: Galvanised Steel & Stainless Steel Hardware

• Maintenance: Hose Down Cleaning (No Repainting Required)
